Steel Roll Top Fencing Sydney – Schools, Parks & Commercial Mesh Fencing

Roll top fencing is a welded steel mesh panel – 50 × 150 mm rectangles in 4 or 5 mm wire – with the top and bottom edges rolled into a smooth loop. The roll removes every sharp wire end, stiffens the panel and gives the fence its recognisable profile. It is see-through, so supervisors can see across a playground or oval, and it is difficult to climb, cut or vandalise.

We supply and install roll top fencing for schools, childcare centres, sports grounds, parks, retirement villages and commercial sites across Sydney, with pedestrian, double-swing and sliding gates to match. Roll top sits alongside our 2.1 m spear-top security panels – same posts, same colours, chosen by the site's needs.

Steel security fencing we supply and install

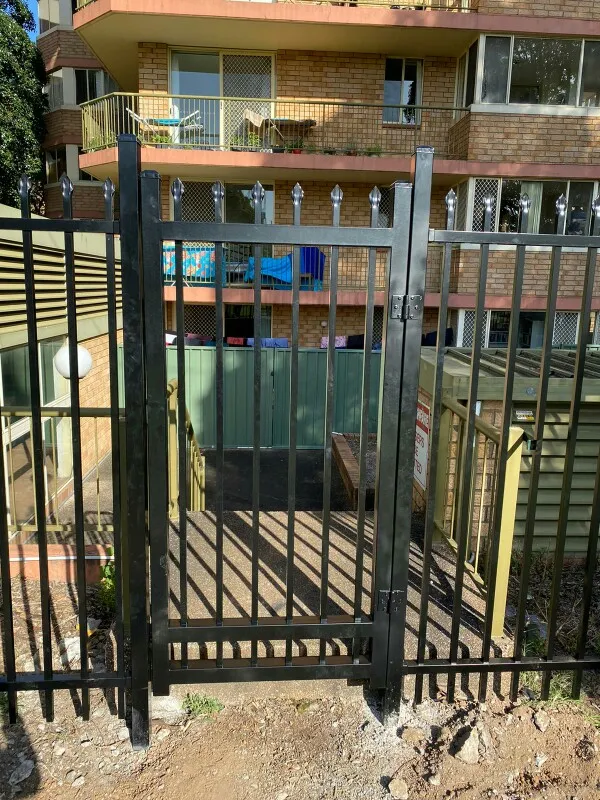

2.1 m black steel security panel (spear top) – roll top uses the same posts and finish

Security fencing installed by Fencing Sydney

Where roll top is specified

Schools and childcare – 1.8 m or 2.1 m boundary fencing, internal play-area fencing at 1.2 m, self-closing pedestrian gates and lockable vehicle gates.
Sports fields and courts – 1.2 m to 2.1 m perimeters, dugouts and player enclosures; taller chain-wire or mesh ball-stops behind goals.
Parks, reserves and playgrounds – dog parks, playground surrounds, creek and pond edges where visibility matters.
Aquatic centres and shared pools – 1.2 m or 1.8 m barriers to AS 1926.1 with compliant gates and latches.
Industrial and utilities – substations, pump stations, carparks and plant enclosures where spear tops are not wanted.

Roll top vs spear top vs chain wire

	Roll top mesh	Spear-top security panel	Chain wire
Sharp points	None	Yes – deterrent	Knuckled or barbed selvedge
Climb resistance	High (small mesh)	High (vertical pickets)	Low
Cut resistance	High (4–5 mm welded)	High	Low–moderate
Appearance	Neat, uniform	Formal, secure	Utilitarian
Typical use	Schools, parks, childcare	Commercial, industrial	Sports courts, temporary, budget
Cost	Medium	Medium	Low

Gates and hardware

Gates are built from the same mesh in a 40 × 40 mm or 50 × 50 mm RHS frame. Pedestrian gates take self-closing hinges and a keyed or magnetic latch (child-safe latches where required); double gates use a drop bolt and padlock provision or an electric strike; sliding gates run on a track or cantilever and can be motorised with access control. Panic-exit hardware is available for school and public egress gates.

How we quote commercial fencing

From your drawings, specification or a site walk – we measure, note levels, services and access, and confirm gate positions.
Itemised quote: panels, posts, footings, gates, hardware, removal of existing fencing and any core drilling or concrete cutting.
Work to school-holiday or after-hours windows where required; SWMS and insurances provided.
Supply-only pricing for other contractors and councils.

Security panels, posts and gate hardware (supply only)

Aluminium Flat Top Pool Safe Single Gate Door 970mm Wide x 1.2 High

Aluminium flat top single gate door, 970 mm wide x 1.2 m high, in black powder coat.

Colorbond Double Gate 1.8m (H)

All Gate Components to make a Double Gate up to 3.1m long and 1.8m High.

Colorbond Double Gate 2.1m (H)

All Gate Components to make a Double Gate up to 3.1m long and 2.1m High.

Colorbond Double Gate Kit

Complete Colorbond Double Gate Kit - Bag of Screws Included.

Colorbond Fence C Post

Genuine Colorbond steel fence C-post (channel post) used with Colorbond fence panels. Available in 2.1 m, 2.4 …

Colorbond Single Gate Kit

Complete Colorbond Single Gate Kit - Bag of Screws Included.

Colorbond Single Gate 2.1m (H)

All Gate Components to make a Single Gate up to 1.5m long and 2.1m High.

Colorbond Fence Extension Posts

We offer 3 types of Cpost Extensions.

Common questions

What is roll top fencing?

Welded steel mesh panels whose top (and usually bottom) edge is rolled over into a smooth loop instead of finishing in cut wire ends. The roll removes sharp points, adds rigidity, and gives the fence its distinctive look. Standard mesh is 50 × 150 mm rectangles in 4 mm or 5 mm galvanised, powder-coated wire.

Where is roll top used?

Schools, childcare centres, sports fields, parks and playgrounds, aquatic centres, council reserves, retirement villages and industrial sites – anywhere a safe, see-through, vandal-resistant boundary is needed. It is often specified in council and Department of Education standard details.

Is roll top fencing safe for children?

That is its purpose. The rolled edges have no sharp points, the 50 × 150 mm mesh is too small for footholds when installed vertically, and heights of 1.8 m or 2.1 m stop climbing. It is also used as a pool barrier in aquatic centres when built to AS 1926.1.

Roll top or security panel (spear top)?

Spear-top security panels deter intruders with pointed pickets and suit commercial and industrial perimeters. Roll top has no points, so it is the choice around children and the public. Both are 2.1 m steel, powder-coated black or any colour, and both take matching swing and sliding gates.

What heights and colours?

900 mm, 1.2 m, 1.5 m, 1.8 m and 2.1 m panels, 2.4 m or 3.0 m long. Black is standard; any powder-coat colour is available, with green, grey and Colorbond-matched shades common on schools and parks.

Do you do commercial jobs?

Yes – our security fencing work includes the perimeter fence at Parramatta High School: 2.4 m × 2.1 m steel panels on 65 × 65 mm or larger posts (see our security fencing page). We quote from plans or a site walk, work to council and Department specifications, and can supply panels only for other contractors.
